In response to the increasing demand for precision and efficiency in automotive manufacturing, RIG Technology has developed a cutting-edge automated assembly system for automotive components. This system is specifically designed for the assembly of stabilizer bars, a critical part of the vehicle suspension system. The fully automated process incorporates several advanced features to ensure high precision, speed, and reliability while minimizing human intervention. Through this solution, RIG Technology is enabling automotive manufacturers to enhance their productivity and meet rigorous quality standards in an increasingly competitive market.

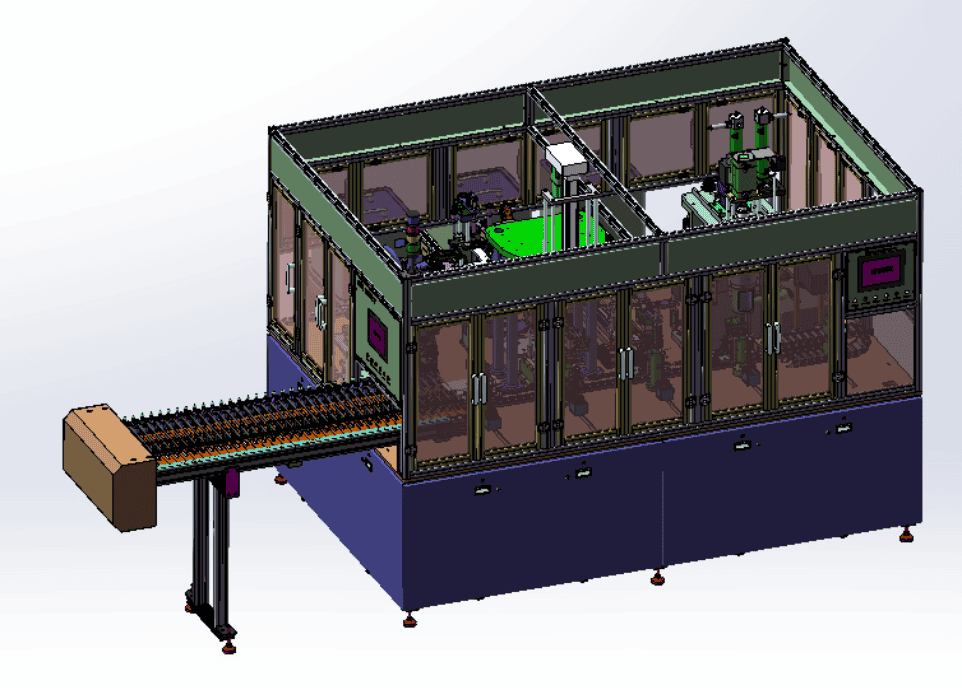

Key Features of the WJFA095 Stabilizer Bar Full Automatic Riveting Machine

The WJFA095 Stabilizer Bar Full Automatic Riveting Machine integrates several crucial processes into one efficient system. The machine is capable of automatic assembly of the ball seat, ball pin, and other critical components. It also includes oil injection, riveting, and automatic marking functions, ensuring that the entire assembly process is optimized for speed and precision.

Key Functionalities Include:

• Ball Pin Threading and Detection: The system automatically checks the threads on the ball pins to ensure quality control.
• Oil Injection and Weight Measurement: The system features precise oil injection with a tolerance of ±0.05g and weight measurement accuracy of ±0.01g.
• Ball Seat Pressing: With a pressing force of up to 5000N and precision monitoring to ensure proper assembly.
• Rotary Riveting: High-speed rotary riveting with servo-controlled motors, pressure sensors, and high-precision detection capabilities.
• Automatic Marking: The system includes a marking device that automatically applies necessary identification marks to the finished product.
• Integrated Testing and Traceability: All parts are tracked throughout the assembly process, ensuring quality control and easy traceability of finished products.

Automated and Integrated Process Workflow:

• The machine includes automatic loading and unloading systems, reducing the need for manual intervention.
• It features intelligent process controls, which adjust assembly parameters in real-time, ensuring continuous production with minimal human oversight.
• The servo-pressing mechanism ensures the correct application of pressure at each stage of assembly, improving the accuracy and repeatability of the process.

Technical Specifications:

Parameter	Specification
Cycle Time per Unit	10 seconds per unit
Ball Pin Thread Detection Accuracy	Visual verification
Oil Injection Precision	±0.05g
Weight Measurement Accuracy	±0.01g
Pressing Force	Max 5000N
Rotary Riveting Speed	Max 800 RPM
Pre-Press Force Range	1000-1500N
Marking System	Automated marking
Machine Dimensions	Custom designed per customer requirements

---

Seamless Integration into Automotive Production Lines

The WJFA095 Stabilizer Bar Full Automatic Riveting Machine is designed to be easily integrated into existing automotive production lines, offering flexibility and scalability. It supports high-volume production and precision assembly, enabling manufacturers to optimize their operations and ensure the high-quality standards demanded in the automotive industry. The system is also designed for minimal downtime, providing the flexibility to switch between different models and configurations with ease.

Enhancing Quality and Efficiency

With real-time monitoring, intelligent controls, and advanced detection systems, the WJFA095 machine ensures that all components meet stringent quality requirements. The full automation of critical steps such as oil injection, riveting, and marking reduces errors, increases throughput, and guarantees consistency across all assembled parts.

Conclusion: Setting New Standards for Automotive Manufacturing

The WJFA095 Stabilizer Bar Full Automatic Riveting Machine represents a significant step forward in automotive manufacturing automation. By integrating various assembly functions into a single, streamlined process, RIG Technology has provided a highly efficient, reliable, and precise solution for manufacturers looking to increase their output while maintaining the highest quality standards. This automated solution empowers automotive companies to stay competitive in a rapidly evolving market, helping them meet the demands of automotive OEMs and Tier-1 suppliers with greater ease and efficiency.
