Introduction:
As the automotive industry continues to demand more efficient and precise manufacturing processes, RIG Technology (Chengdu RIG Technology Co., Ltd.) has been at the forefront of providing advanced, tailor-made automation systems. The company’s latest development—the WJFA051-00 Semi-Automatic Assembly Machine—offers a powerful solution for automotive component assembly, focusing on components like ball joints and connectors. RIG’s engineering expertise and commitment to innovation ensure that their systems improve production efficiency, consistency, and overall quality.

Key Features and Applications:

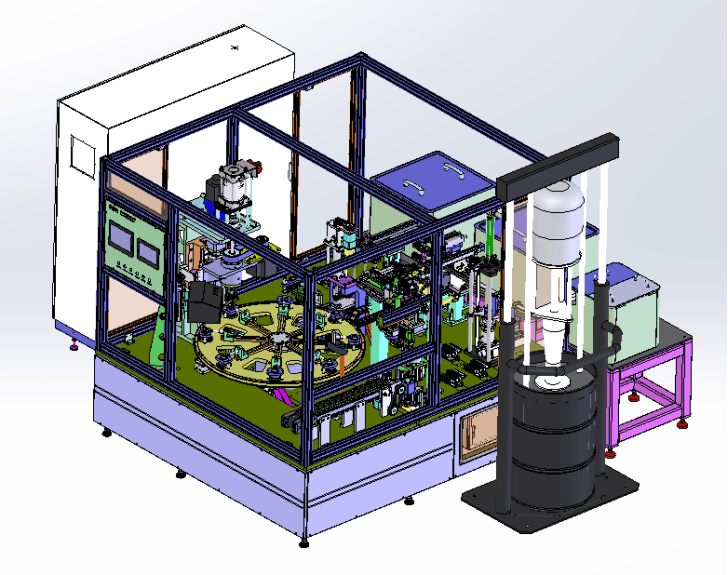

The WJFA051-00 Semi-Automatic Assembly Machine is designed to assemble automotive components with high precision and minimal human intervention. The machine is equipped to handle components such as single ball seats and ball joint connectors, commonly used in automotive suspension systems. The assembly process includes various automated functions, including automatic feeding, servo-controlled oil injection, press-fit assembly, riveting, and marking, all crucial for high-quality manufacturing.

Technology Specifications:

• Machine Dimensions: 4000mm x 3200mm x 2300mm (LxWxH)
• Precision Oil Injection: The system features servo-controlled oil injection, with a precision of ±0.05g for exact oil filling.
• Ball Pin Threading: Automated detection of ball pin threads, with tools changed based on thread variations.
• Servo Pressing: The servo-controlled pressing process ensures accuracy within ±0.02mm for component alignment.
• Riveting Precision: The machine includes pre-press riveting (with height accuracy of ±0.01mm) and rivet force detection under 3 tons.
• Marking Station: The final marking station ensures proper identification and traceability of finished components.
• Production Speed: Capable of assembling a part in under 10 seconds per unit.
• Data Recording: All production data is recorded for analysis, ensuring complete traceability and quality control.

System Integration and Versatility:
This system is designed to accommodate various product configurations by easily switching between different work fixtures depending on the part being assembled. Additionally, the system features automatic component feeding, which ensures consistent production and minimizes human error. The integration of vibration bowls for component feeding and servo-controlled assembly stations allows for flexibility and reliability across different automotive components.

Robust Quality Control:
RIG’s system ensures that all parts are tested for quality and precision. The components undergo real-time monitoring during production, ensuring that all parts meet stringent quality standards. The integrated quality control system includes automatic defect detection and fault alarms, ensuring that only the highest quality parts are produced. The machine also complies with international standards, including ISO 9001 and IATF 16949.

Applications in the Automotive Industry:
The WJFA051-00 Semi-Automatic Assembly Machine is specifically designed for automotive component manufacturing, particularly suspension system parts such as ball joints and connectors. The machine’s flexibility and scalability make it an ideal solution for manufacturers looking to improve production quality and reduce operational costs. Whether for small-scale or large-scale production, this system ensures precision, reliability, and efficiency at every stage of the manufacturing process.

Conclusion:
RIG’s WJFA051-00 Semi-Automatic Assembly Machine is a robust and versatile solution for automotive manufacturers seeking to enhance their production lines with high-quality assembly systems. By incorporating advanced servo technology, automated components feeding, and state-of-the-art quality control features, RIG continues to provide industry-leading solutions that help companies meet the growing demands for precision manufacturing and efficient production.
