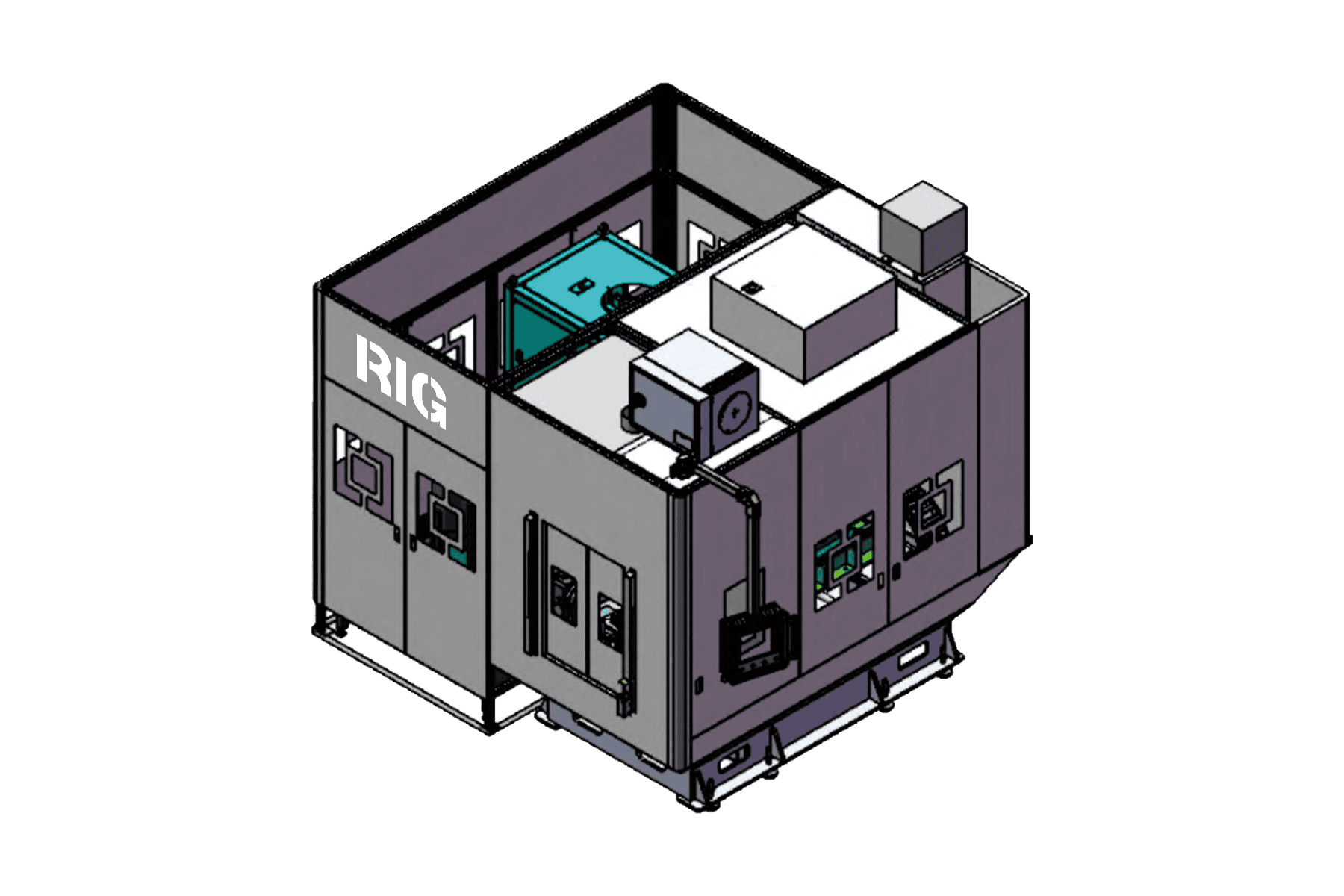

RIG-A162 CNC High-Pressure Water Spray Machine
description
The RIG-A162 CNC High-Pressure Water Spray Machine is an advanced, high-precision cleaning solution designed to meet the stringent requirements of industries such as automotive manufacturing and precision machining. This machine utilizes CNC control and high-pressure water spray to clean parts effectively, ensuring optimal performance and cleanliness in the final product.
Equipped with a high-pressure pump capable of delivering water at up to 50 MPa, the RIG-A162 ensures thorough cleaning of components, removing dirt, oil, and other contaminants with precision. The system includes a high-flow water pump and a moving mechanism that provides a versatile cleaning solution for parts with complex geometries. The machine is designed with a spacious working area, enabling the cleaning of larger parts with ease.
The RIG-A162 is built to operate efficiently with low noise levels and is equipped with advanced safety features. Its user-friendly interface and high-efficiency operation make it an ideal choice for manufacturers looking to enhance their cleaning processes while maintaining a high level of precision and reliability.
Specifications
| Parameter | Specification |
|---|---|
| XYZ Travel | 600 × 600 × 600 mm |
| XYZ Moving Speed | 45 m/min |
| Spindle Spacing | 250 mm |
| High-pressure Pump Pressure | Maximum 50 MPa |
| High-pressure Pump Flow Rate | 20 L/min |
| Operating Noise | <80 dB |
| Power Supply | 3-phase AC 380V ±10%, 50Hz |
| Total Power | 39 kW |
| Machine Weight | 6.5 T |
