Introduction:
As global industries continue to innovate at a rapid pace, precision manufacturing has become an essential component of maintaining competitive advantage. RIG Technology Co., Ltd. (RIG), a leading provider of advanced automation solutions, has been instrumental in developing cutting-edge technology to enhance efficiency and accuracy in the automotive manufacturing sector. This case study explores RIG’s collaboration with a key automotive company to provide a fully automated system for SubFrame Bushing Automation, highlighting the role of RIG’s solutions in streamlining production and ensuring high-quality results.

Project Overview:

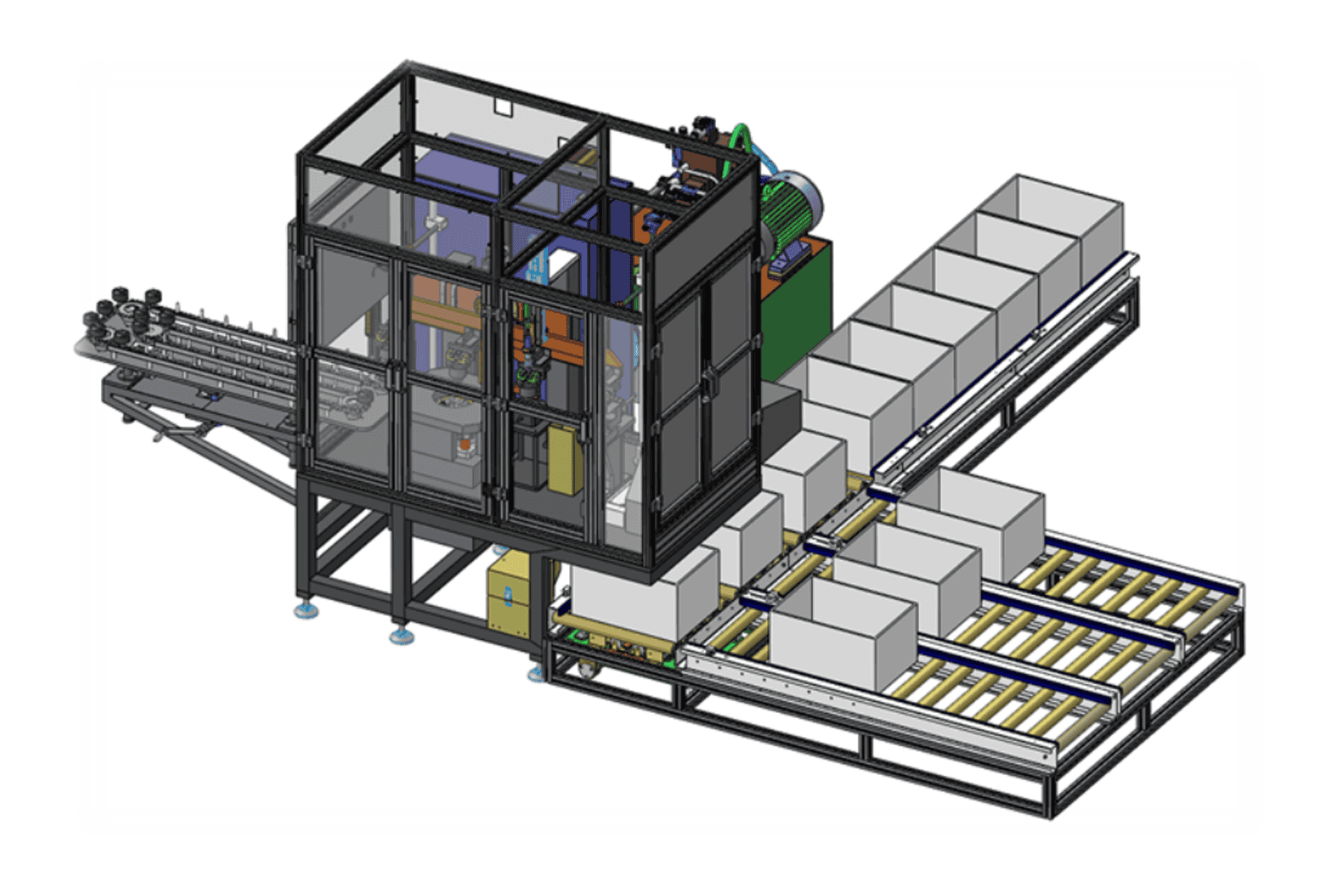

RIG’s customized automation equipment, specifically designed for SubFrame Bushing Pressing and related tasks, has significantly improved manufacturing capabilities. The RIG-A263 Subaru SubFrame Bushing Automation System was developed to automate the pressing, inspection, and anti-rust oil spraying processes for automotive subframe bushings. This state-of-the-art system includes several critical processes, each engineered to enhance productivity and reduce manual intervention.

Key Features and Technological Advancements:

1. Fully Automated Production Line:
   The system features an automated S-chain loop line that handles bushing loading, hydraulic swaging, and product inspection. The automated line ensures a streamlined process, reducing production time while maintaining accuracy.
2. Hydraulic Swage and Pressure Control:
   The hydraulic press applies a maximum pressure of 63T, with a pressure sensor capable of monitoring the force-displacement curve. This system ensures the precise swaging of the bushings and stores data for future reference, enhancing traceability.
3. Product Detection and Quality Control:
   The Keyence CCD inspection system automatically detects bushing outer diameter (OD) and height, ensuring that only qualified products proceed through the assembly process. Unqualified parts are diverted to an NG box, preventing errors and increasing the overall quality of the output.
4. Anti-Rust Oil Spraying:
   The system includes an automated anti-rust oil spraying station, ensuring that each bushing receives a uniform coating to prevent corrosion. The product is rotated for uniform spraying, and the process is protected by a mobile cover to avoid contamination.
5. Three-Channel Unloading and Sorting:
   Once the bushings are tested and coated, they are classified using CCD detection, which identifies different product types. The bushings are then placed into corresponding material totes for further processing, ensuring smooth material flow and reducing handling time.

Technical Specifications:

Parameter	Specification
Hydraulic Cylinder Max Pressure	63T
Force Sensor Range	80T
Bushing Storage Capacity	30 bushings
Hydraulic Cylinder Stroke	60mm
Pressure Detection Accuracy	±1%
Swage Time per Unit	8s/pc
Speed of Chain Line	50-100mm/s (adjustable)
Material Totes	3 totes for final product collection
Product Detection System	Keyence CCD
Anti-Rust Oil Spraying System	Rotating product for even spraying

Client Benefits and Impact:

This automated system significantly enhances production throughput, ensuring consistent, high-quality results across a high-volume manufacturing environment. By automating critical steps such as bushing swaging, OD detection, and anti-rust oil spraying, RIG’s solution has enabled the client to:

• Increase production speed and efficiency.
• Improve product consistency with precise measurements.
• Reduce manual labor and human error.
• Provide full traceability through real-time data monitoring.

The system has been a vital component in helping the client meet global industry standards while ensuring reliability and performance in every part produced.

Conclusion:

RIG Technology’s RIG-A263 Subaru SubFrame Bushing Automation System is a prime example of how intelligent automation can transform automotive manufacturing. By integrating advanced hydraulic swaging, automated detection, and anti-rust spraying technologies, RIG offers comprehensive solutions that improve production efficiency, reduce costs, and enhance product quality.

RIG remains at the forefront of innovation in the automotive manufacturing automation sector, providing solutions that empower companies to meet the increasing demand for high-precision and high-volume production.
